Arti.Fix Pitched Roof
The practicality that follows you on site

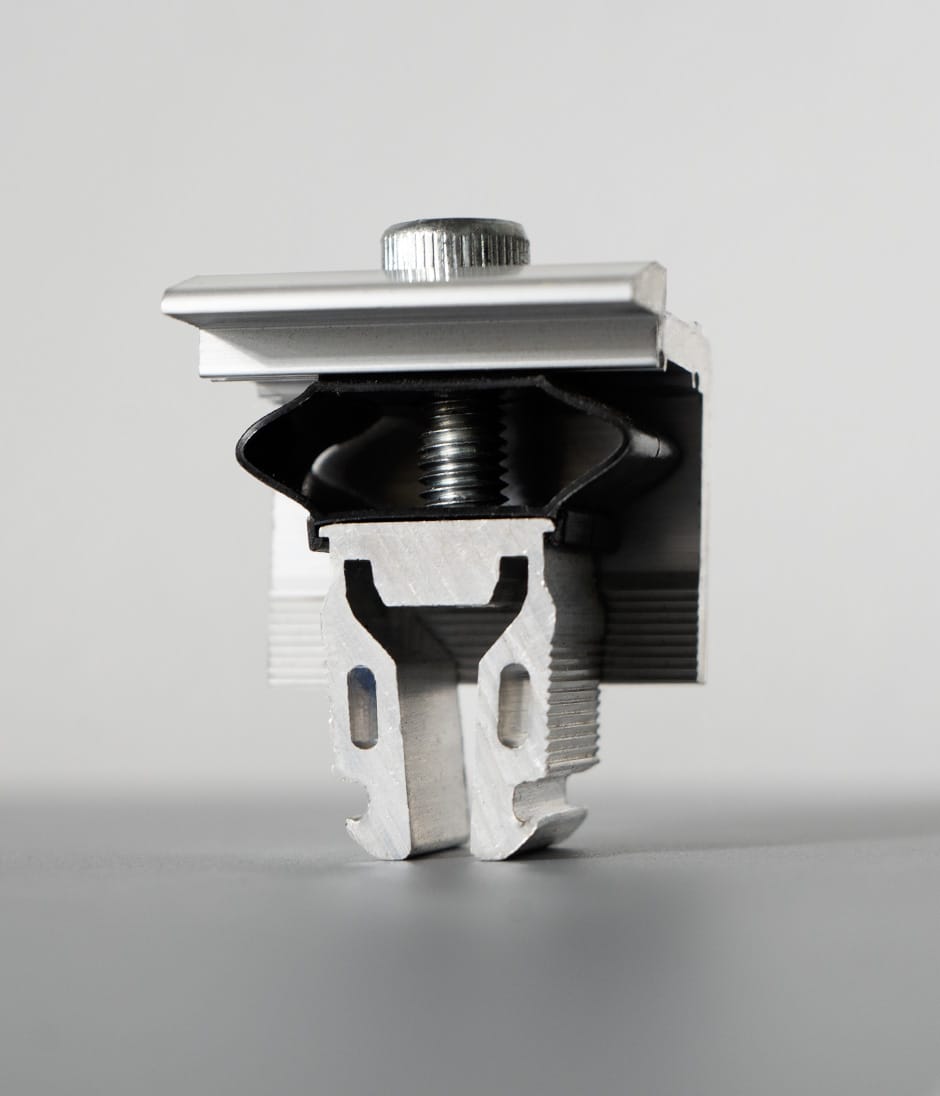

Central Clamp - MC
Pre-assembled central clamp for photovoltaic modules with aluminum frame.
Technical Specifications
Material: Anodized AL60 X63-T5 / SS304 Anodization thickness ≥ 10 μm
Fasteners: M8X55 304 stainless steel
Information: Color: silver and black - Thickness: 35mm - Weight: 0.07 kg Clamping pairs: 10Nm - Warranty: 10 years
Central Clamp - MC
Pre-assembled central clamp for photovoltaic modules with aluminum frame.
Technical Specifications
Material: Anodized AL60 X63-T5 / SS304 Anodization thickness ≥ 10 μm
Fasteners: M8X55 304 stainless steel
Information: Color: silver and black - Thickness: 35mm - Weight: 0.07 kg Clamping pairs: 10Nm - Warranty: 10 years
End Clamp - EC
Pre-assembled central clamp for photovoltaic modules with aluminum frame.
Technical Specifications
Material: Anodized AL60 X63-T5 / SS304 Anodization thickness ≥ 10 μm
Fasteners: M8X55 304 stainless steel
Information: Color: silver and black - Thickness: 35mm - Weight: 0.07 kg Clamping pairs: 10Nm - Warranty: 10 years

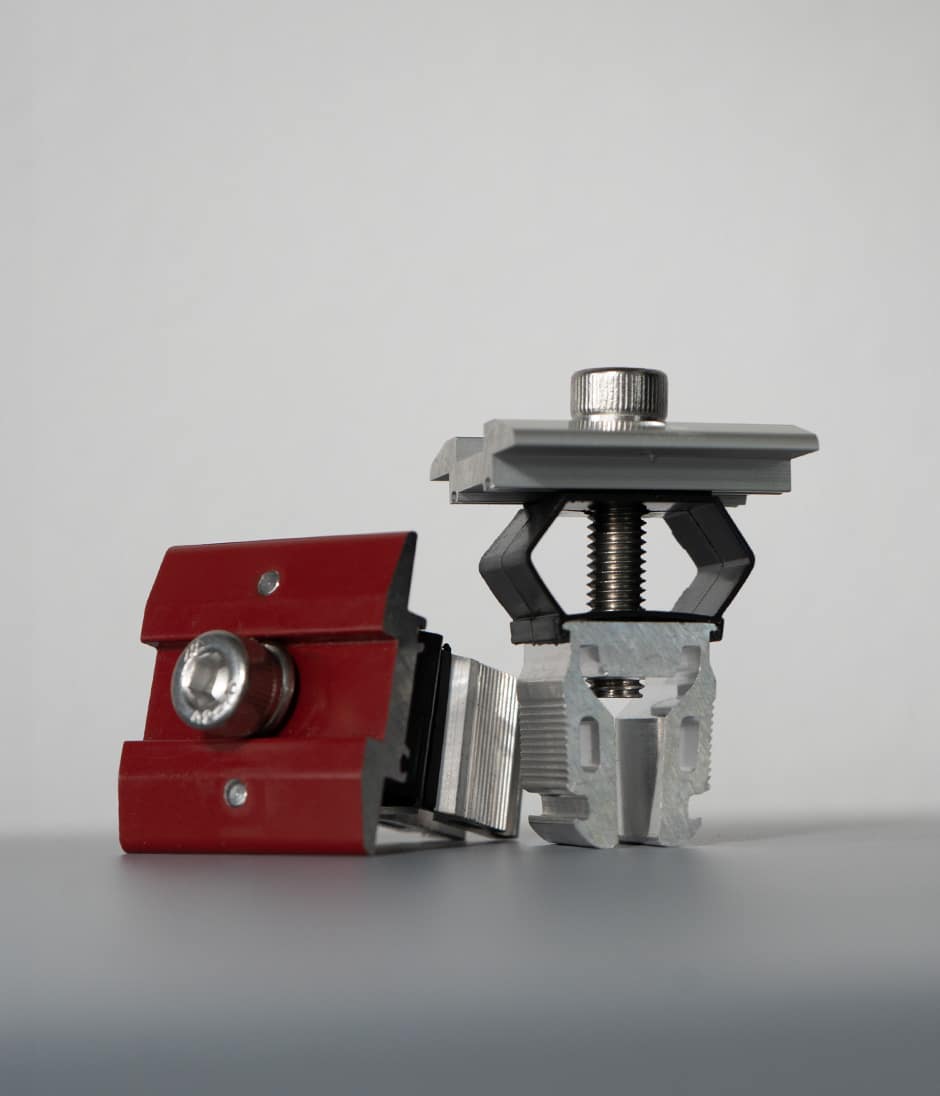

End Clamp - ECX
Pre-assembled end clamp for photovoltaic modules with aluminum frame.
Technical Specifications
Material: Anodized AL60 X63-T5 / SS304 Anodization thickness ≥ 10 μm
Fasteners: M8X55 304 stainless steel
Information: Color: silver, black and red - Thickness: 30-40mm - Weight: 0.07 kg Clamping pairs: 10Nm - Warranty: 10 yearss
Profile Junction - RCON
Steel junction bracket, allows to connect two series-R2 profile bars.
Technical Specifications
Material: Steel with Magnelis treatment
Information: Color: silver and black - Thickness: 35x200mm - Weight: 0.12 kg Warranty: 10 years
Profile - SERIES R2
Aluminum profile for the fixing of photovoltaic panels with horizontal orientation for roof tiles.
Technical Specifications
Material:Anodized AL6063-T5/SS304 Anodization thickness ≥ 10 μm
Length: 3000 mm
Information: Anti-infiltration Color: silver Custom cutting service
Accessories: TPR1 – Pressure plug with logo made of ABS material resistant to the outdoor environment.

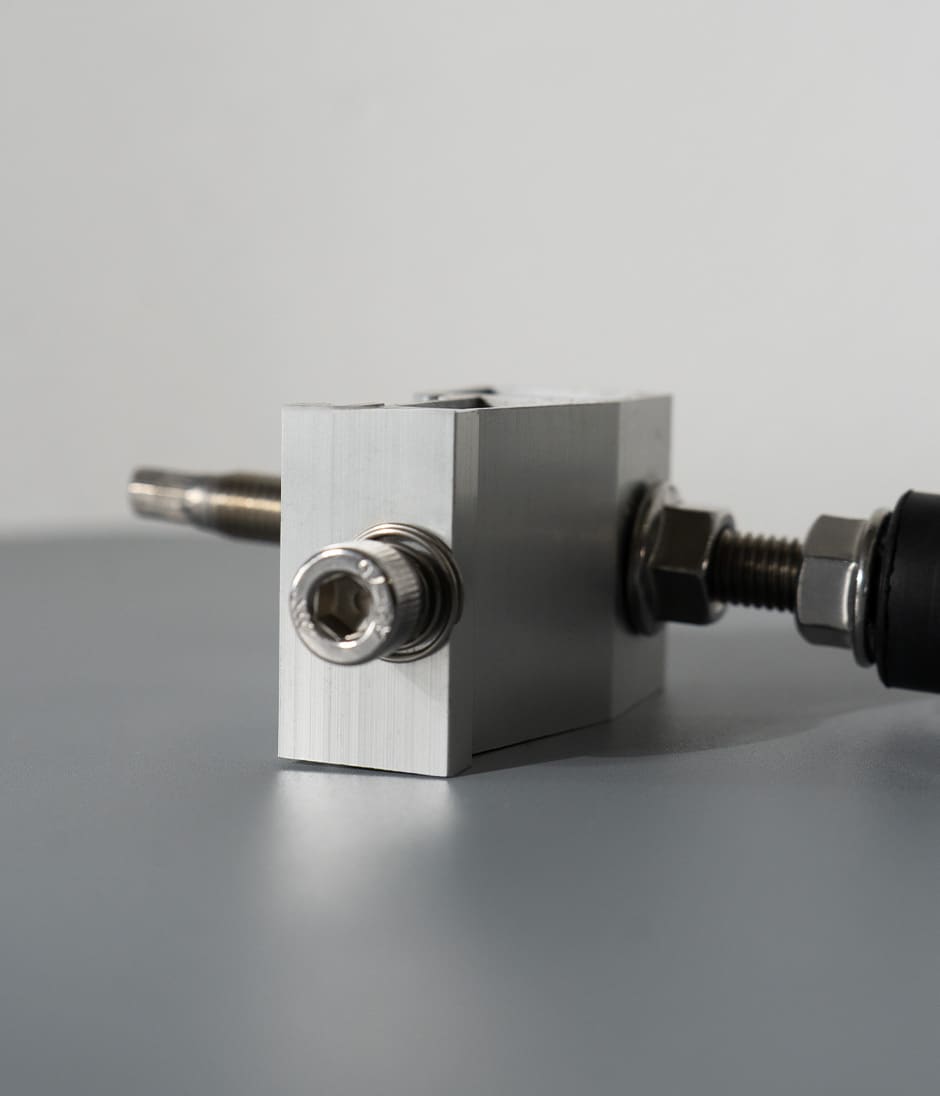

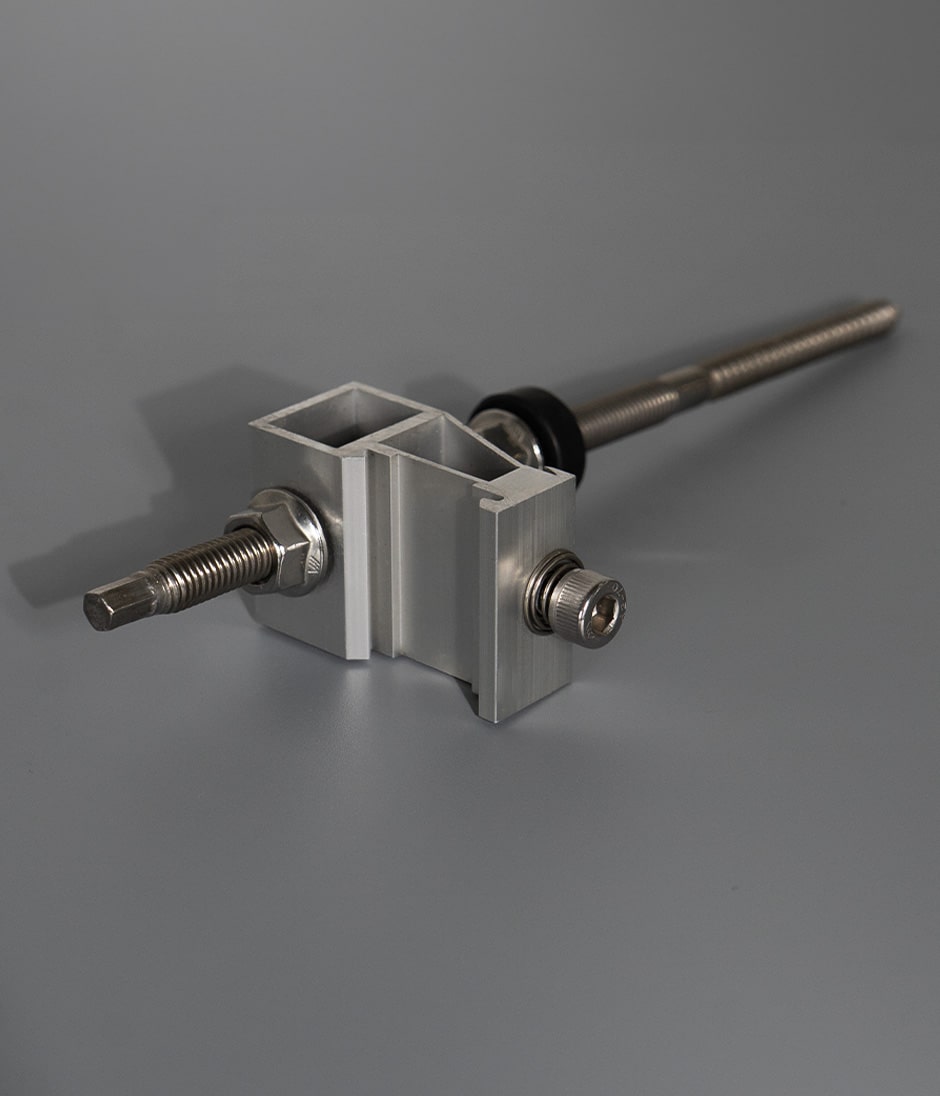

Anchor Bolt - M10x210-AR
Quick-attachment aluminum clamp with single pre-assembled bolt.
The spring system allows for quick installation of the R2 series profiles.
Technical Specifications
Material:Anodized AL6063-T5/SS304 Anodization thickness ≥ 10 μm
Fasteners: N°1 M10X250 stainless steel. N°1 M8X25 stainless steel
Information: Color: silver - R2 quick-attachment system - Thread height: 67 mm Clamping pairs: 10Nm - Warranty: 10 years

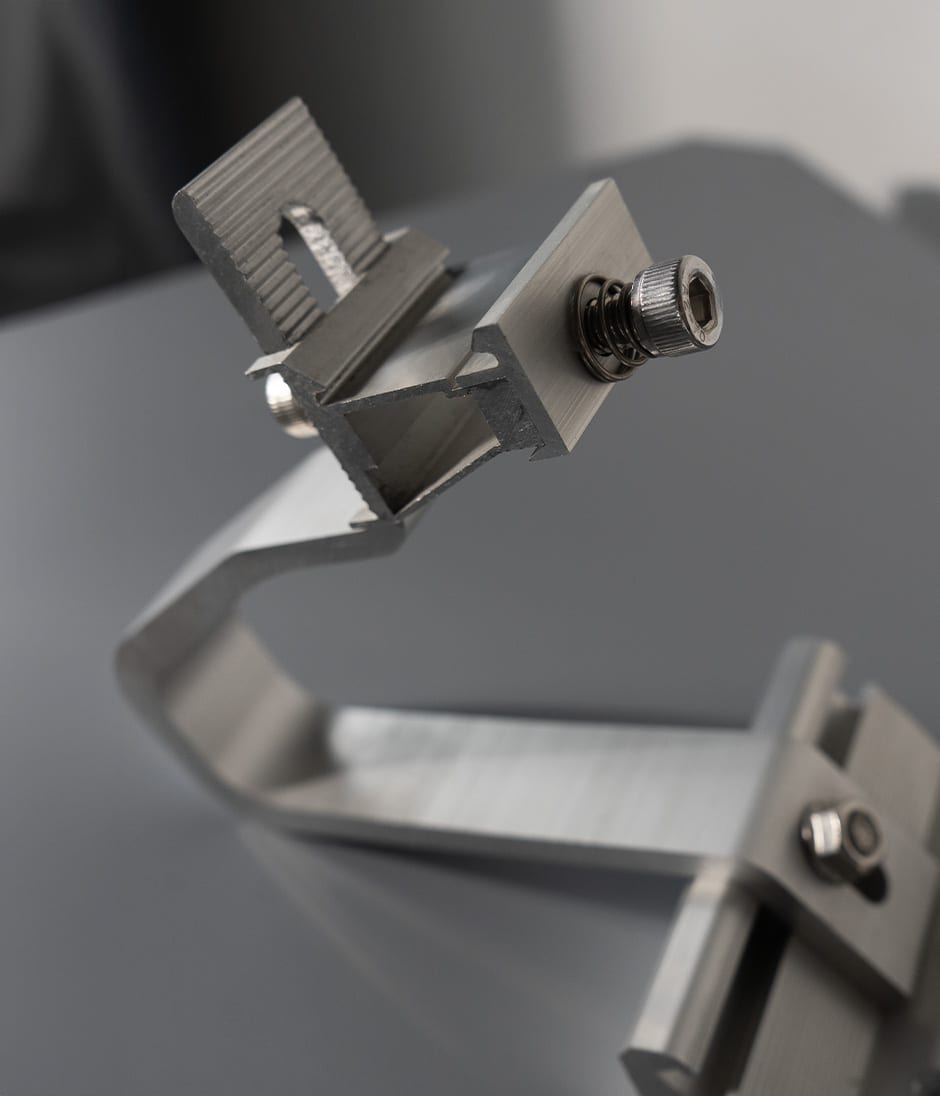

Bracket H101 - STH1-1
Steel bracket for the installation of photovoltaic panels on tiled roofing surfaces and battens of variable height.
Technical Specifications
Material: SS304 stainless steel
Fasteners: N°1 M8x25 304 stainless steel N°2 M8X75 304 stainless steel
Information: Variable fixing height: 113-149 mm Clamping pairs: 10Nm Warranty: 10 years

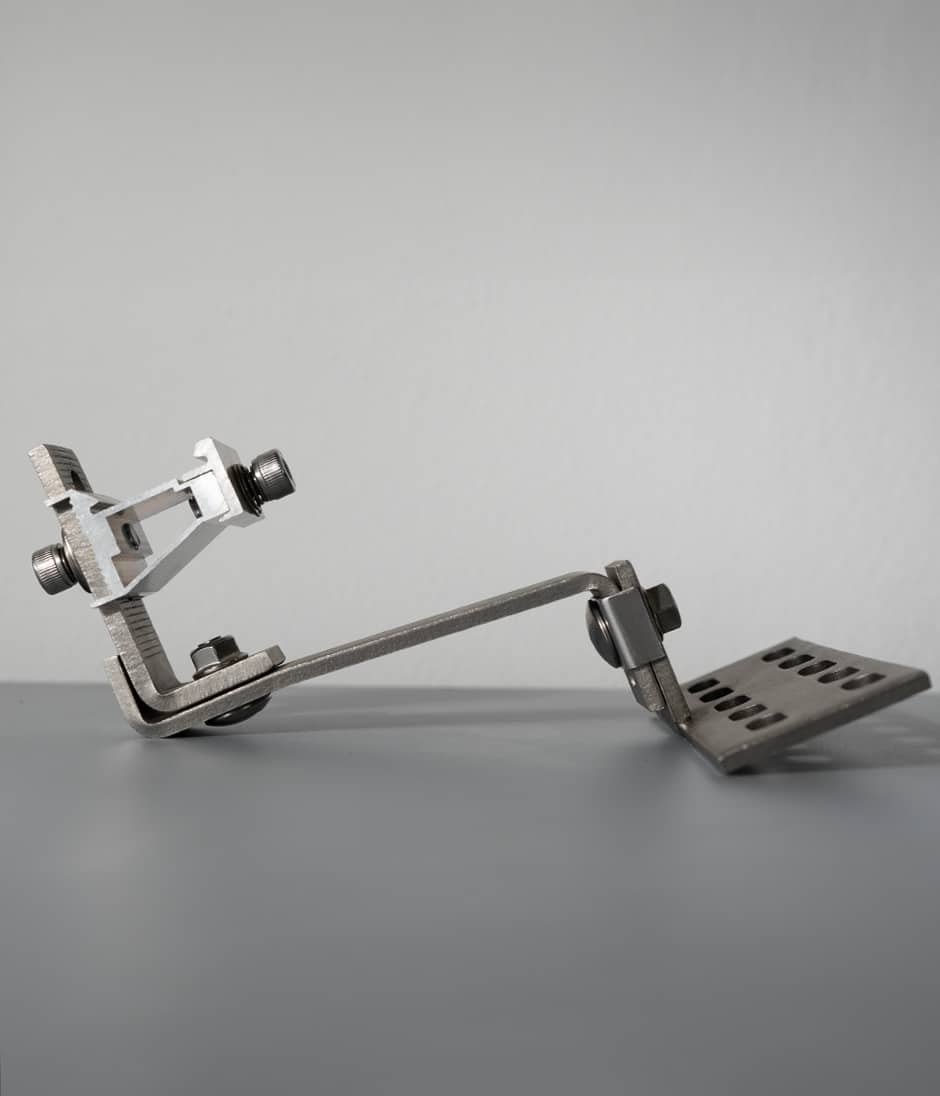

Bracket STH1-5-AR
Steel bracket with 2 adjustment variables for the installation of photovoltaic panels on tiled roofing surfaces and battens.
Technical Specifications
Material: SS304 stainless steel
Fasteners: N°1 M10x30 304 stainless steel
Information: Variable fixing height: 150-189 mm - Clamping pairs: 10Nm Warranty: 10 years
Bracket STH1-7-AR
Steel bracket with 2 adjustment variables for the installation of photovoltaic panels on tiled roofing surfaces and battens.
Technical Specifications
Material: SS304 stainless steel
Fasteners: N°1 M10x30 304 stainless steel
Information: Variable fixing height: 150-189 mm - Clamping pairs: 10Nm Warranty: 10 years
