Arti.Fix Sheet Metal Roof
The practicality that follows you to the construction site.

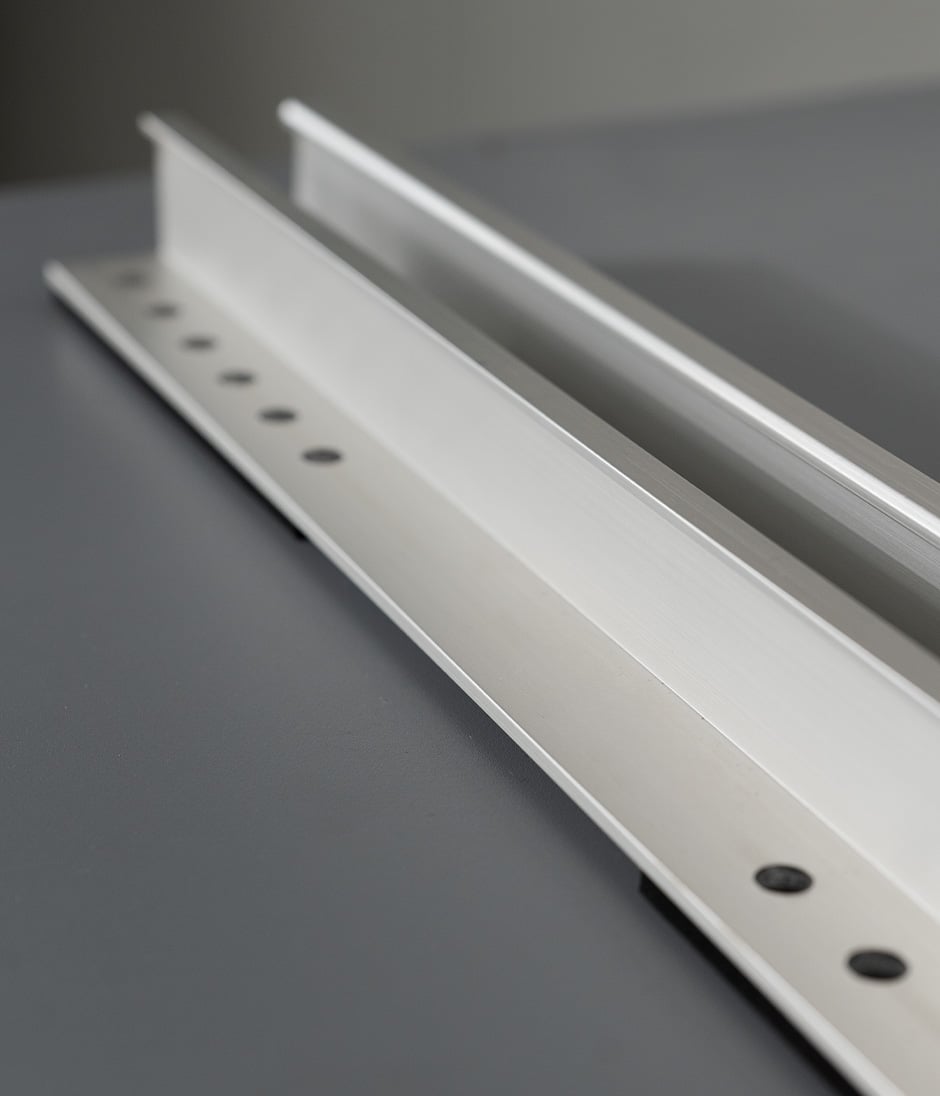

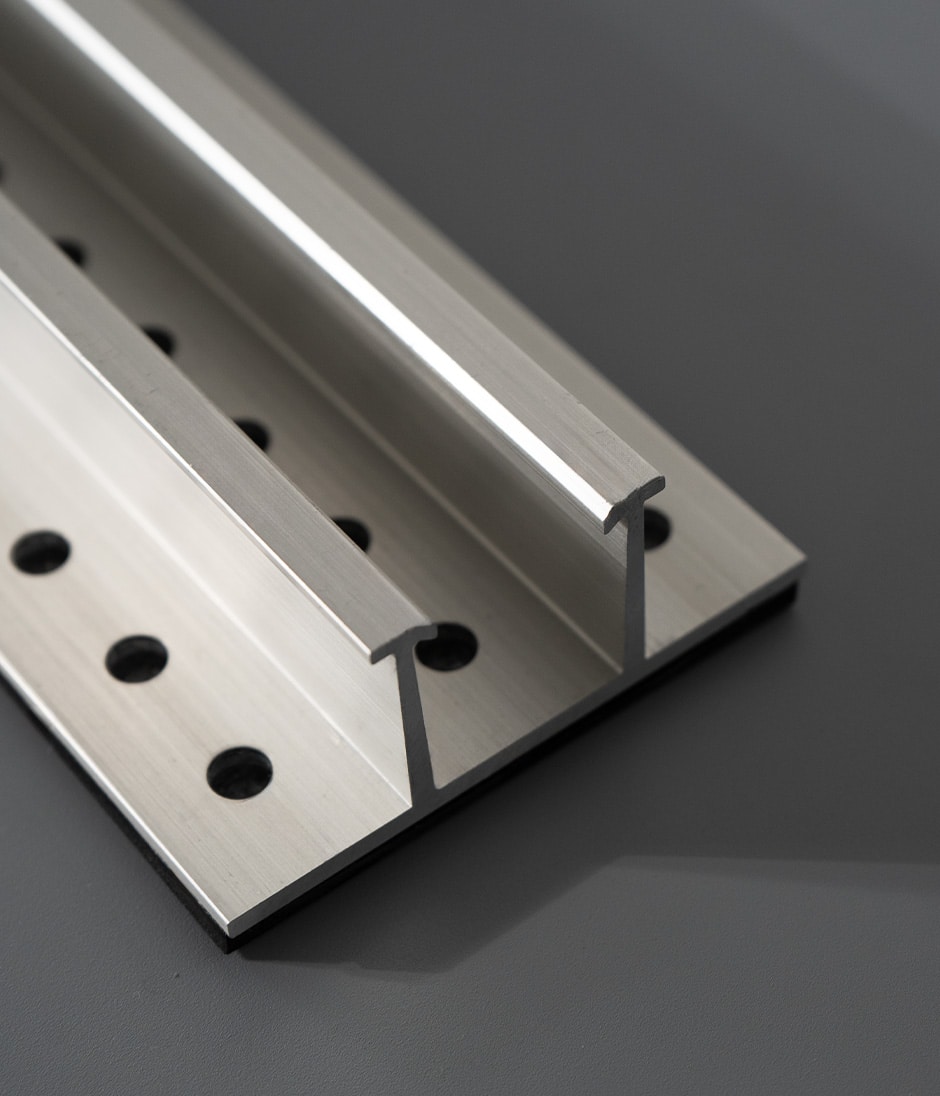

Perforated Mini Profile - MINIR
Perforated Mini Profile – MINIR It is a profile with a perforated base of length 375 mm. Suitable for trapezoidal sheet metal roofs, it allows the fixing of panels in series via pre-assembled clamps MC35 EC35.
Technical Specifications
Material:Anodized AL6063-T5/SS304 Anodization thickness ≥ 10 μm
Fasteners: N°1 M8x35 304 stainless steel N°6 ST6.3×25 304 stainless steel
Information: Color: silver and black - Dimension: 30x77x375 mm - Waterproofed with EPDM rubber Clamping pairs: 10Nm - Warranty: 10 years

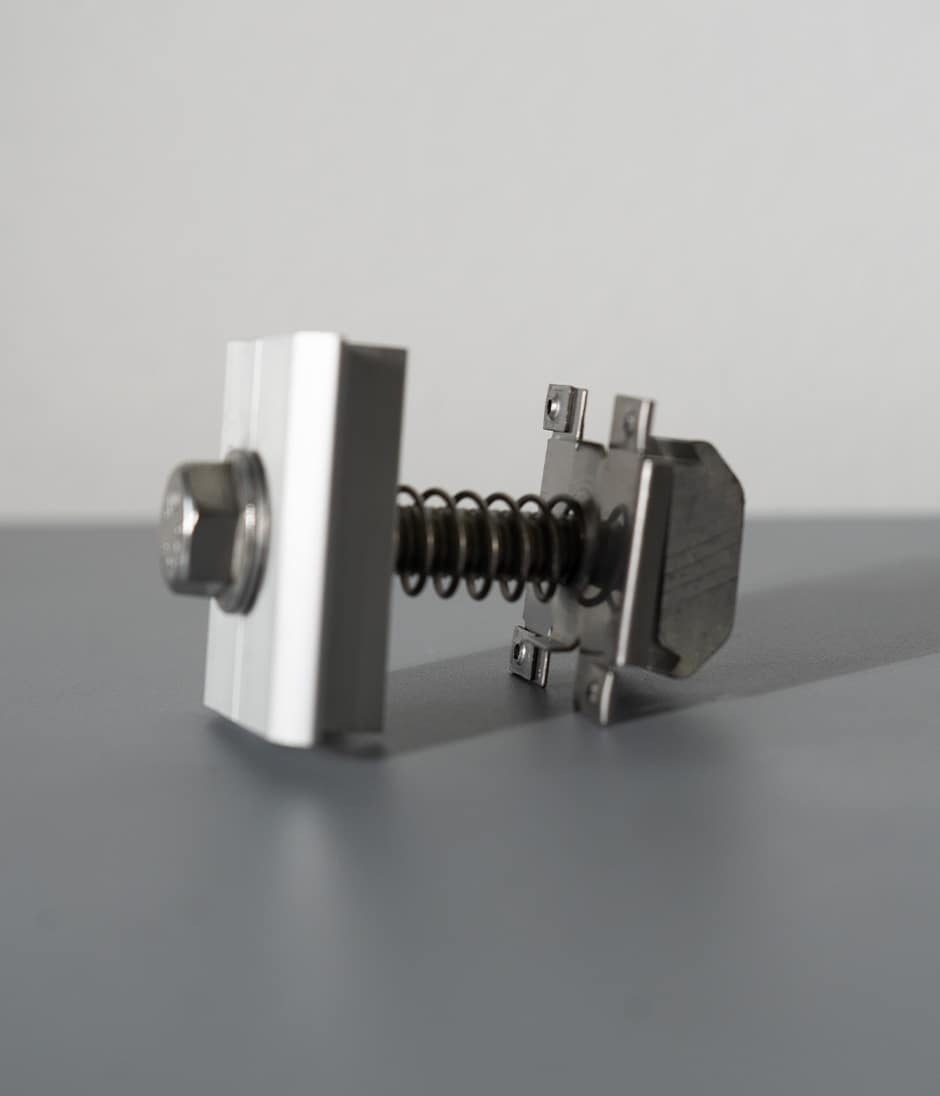

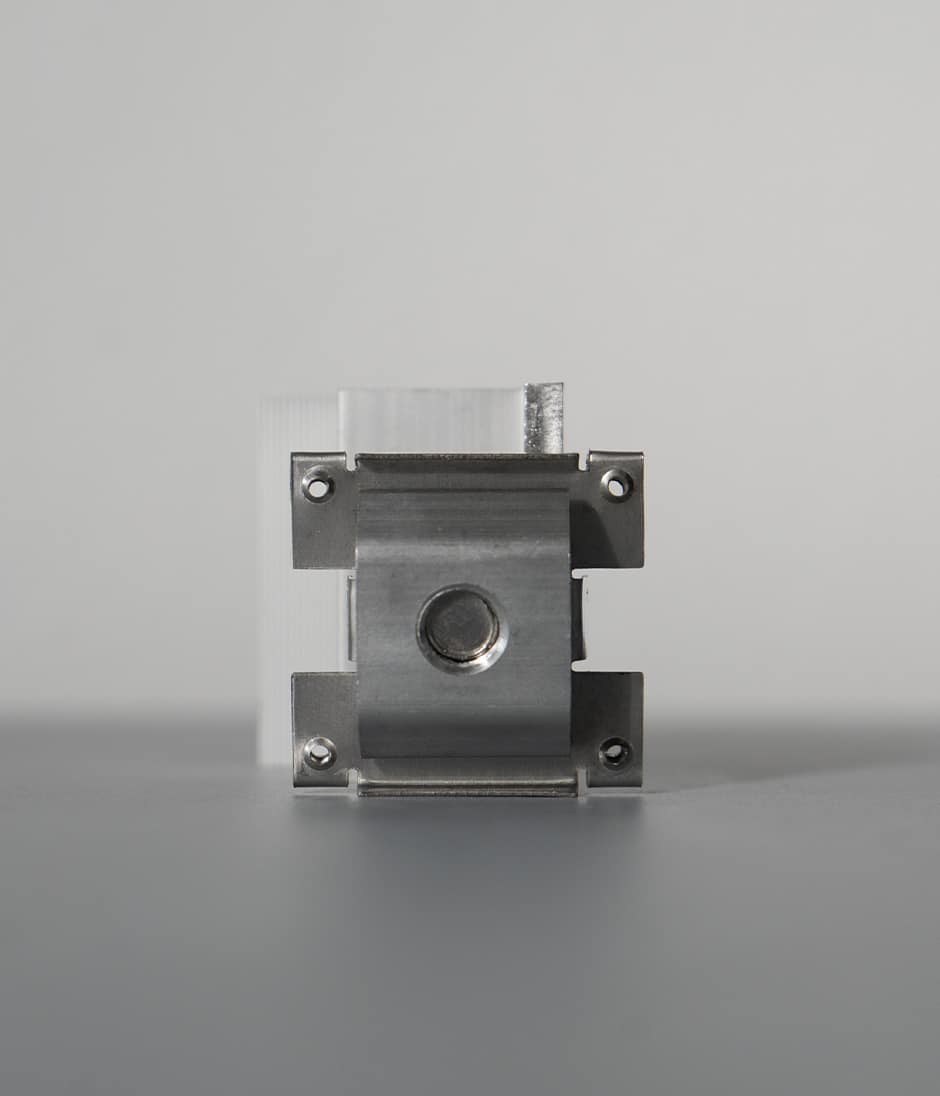

Central Clamp - MC
Pre-assembled central clamp for photovoltaic modules with aluminum frame.
Technical Specifications
Material:Anodized AL60 X63-T5/SS304 Anodization thickness ≥ 10 μm
Fasteners: M8X55 304 stainless steel
Information: Color: silver and black - Thickness: 35mm - Weight: 0.07 kg Clamping pairs: 10Nm - Warranty: 10 years

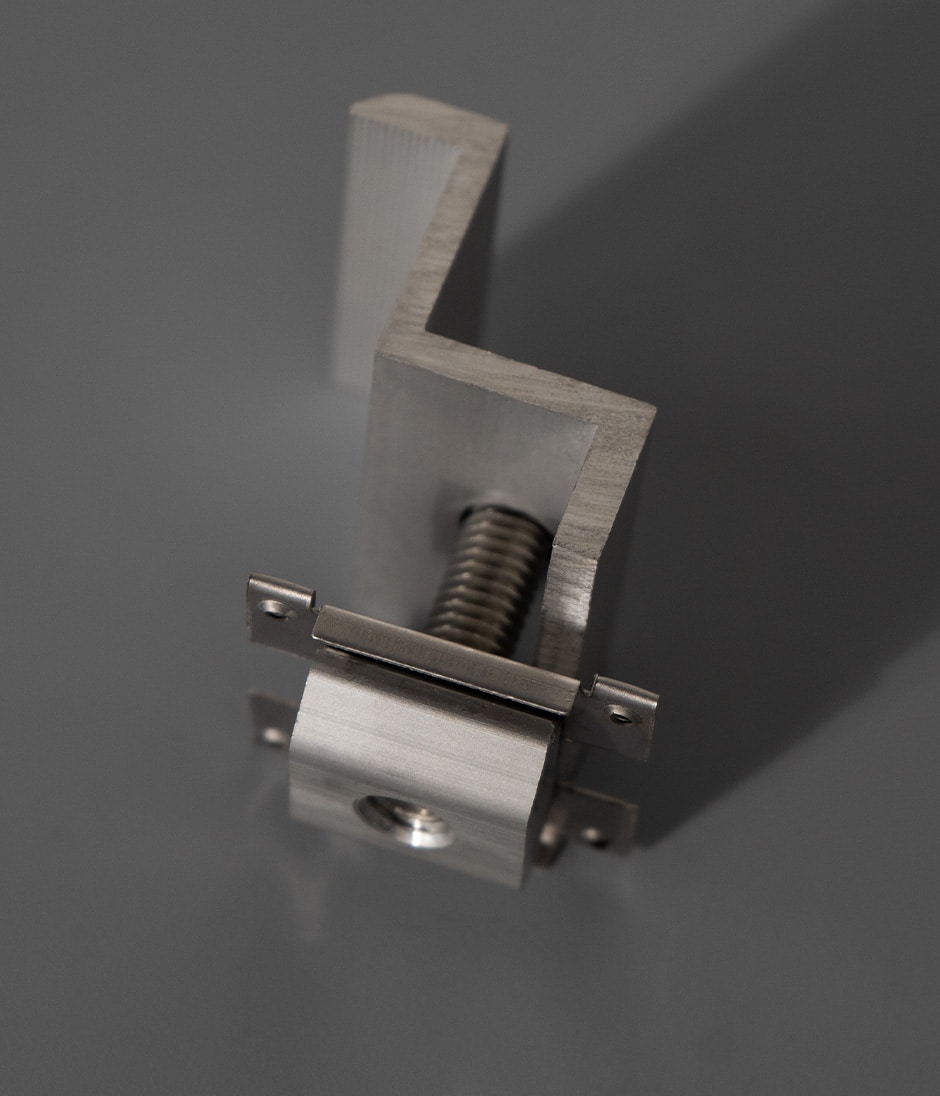

End Clamp - EC
Pre-assembled end clamp for photovoltaic modules with aluminum frame.
Technical Specifications
Material: Anodized AL60 X63-T5/SS304 Anodization thickness ≥ 10 μm
Fasteners: M8X30 304 stainless steel
Information: Color: silver and black - Thickness: 35mm - Weight: 0.07 kg Clamping pairs: 10Nm - Warranty: 10 years
